PORTABLE SOLAR PANEL
SD-SP200-G1

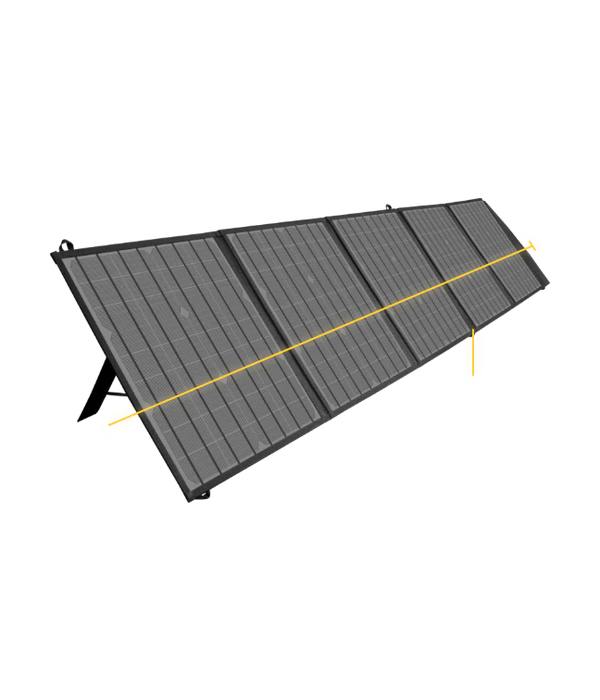

Keep all your devices juiced-up on the go with our 200W Solar Panel.
Built with adventure in mind, the 5 40W Panels fold up into an easily transported, waterproof carrying bag.
The 200W Solar Panel is designed to be future-proof, with numerous included adapter types, and integrated USB QC3.0 (x2), USB-C, and DC charging outputs.
Featuring our trusted SeeDevil durability and build quality, the panels themselves are made from a Laminated Monocrystalline and are covered in a waterproof 900D Oxford Cloth.
From the road, campsite, beach and more - SeeDevil solar panels are ready to bring battery free, eco friendly power to all your adventures!
Parts Included
—
• 200W Solar Panel

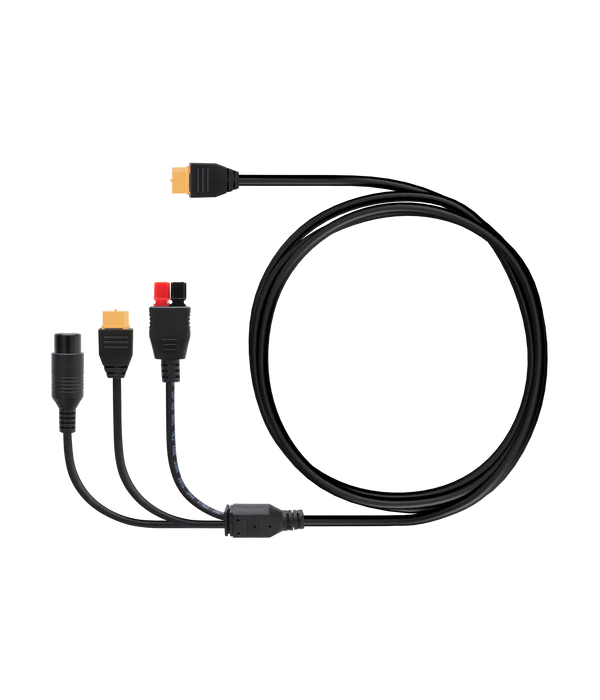

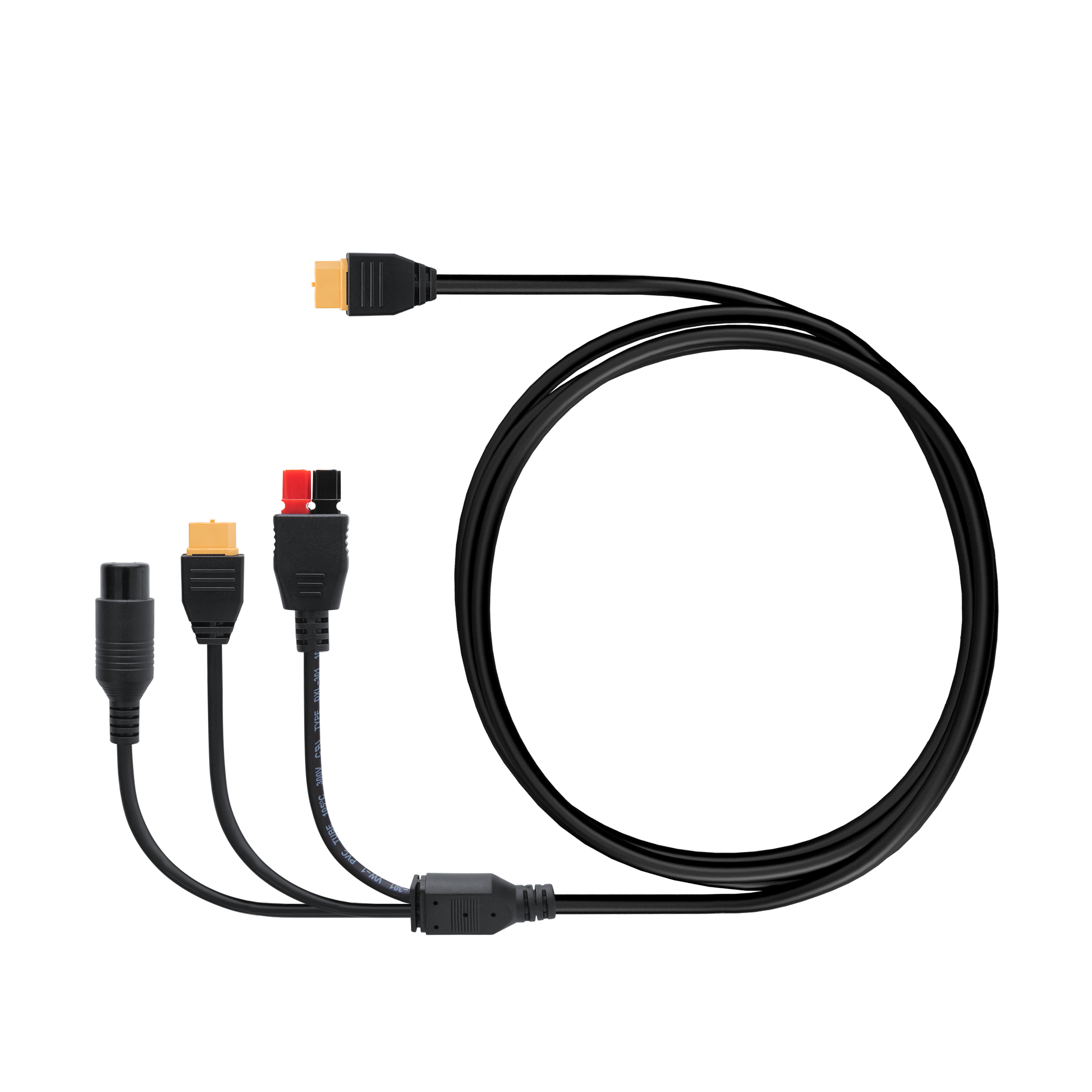

• 1x Power Cord (XT60 to M20/XT60/Anderson Connectors)

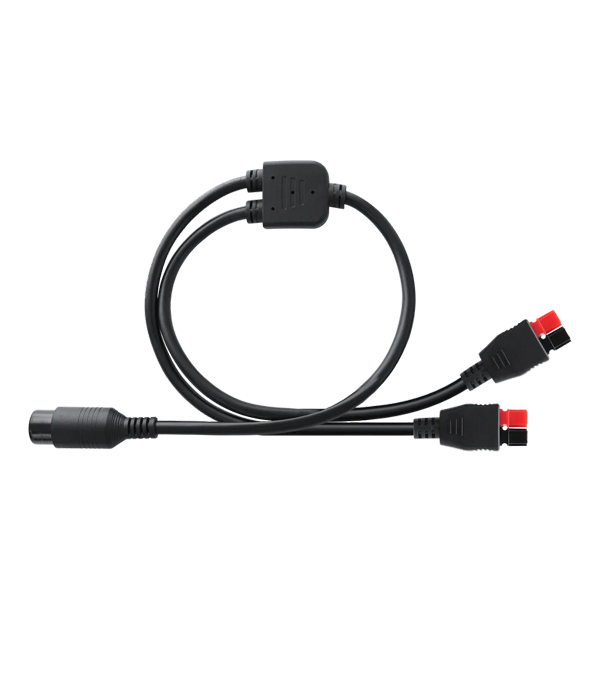

• 1x Power Cord to Connect 2 Solar Panels in series*
*(Only recommended for our 2000W solar power station)
• 10x DC Connectors
• 1x DC5521 to DC5521 Power Cable
Ready for Adventure!
Small & Compact + Weighs only 17.5lbs
Convenient zipper pouch for charging + device & cord stroage
SPECIFICATIONS
| SPEC | DETAIL |
|
Peak Power (Pm) |
200W±10% |
|
Solar Cell Type |
Monocrystalline |
|
Cell Efficiency |
22% |
|
Optimum Operating Voltage (Vmp) |
22.5V |
|
Optimum Operating Current (Imp) |
8.9A |
|
Open Circuit Coltage (Voc) |
28V |
|
Short Curcuit Current (Isc) |
9.6A |
|
Operating Temperature Range |
-50-140°F |
|
USB Output |
QC3.0*2+USB- C PD18W*1 |
|
Output Connector |
XT60, DC5525 |
|
Materials |
Lamninated Monocrystalline solar panels Oxford Cloth 900D |
DIMENSIONS & WEIGHT
| SPEC | DETAIL |
|
Unfolded Size (in) |
115 x 21in |
|
Folded Size (in) |
21 x 21 in |
|
Weight (lb) |
17.5 lbs |
